TUBO API

UNI EN 10297

  * Autorizzo al trattamento dei dati personali. Leggi Informativa.
Misure di uso corrente

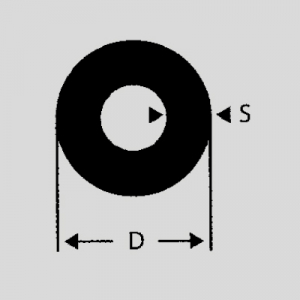

Diametro in pollici Diametro esterno Spessore Norme API Classe Schedula Peso
1/8 10,3 1,73 5L STD 40 0,37
1/8 10,3 2,41 5L XS 80 0,47
1/4 13,7 2,24 5L STD 40 0,63
1/4 13,7 3,02 5L STD 80 0,80
3/8 17,1 2,31 5L STD 40 0,80
3/8 17,1 3,20 5L XS 80 1,10
1/2 21,3 2,77 5L STD 40 1,27
1/2 21,3 3,73 5L XS 80 1,62
1/2 21,3 4,78 160 1,95
3/4 26,7 2,87 5L STD 40 1,69
3/4 26,7 3,91 5L XS 80 2,20
3/4 26,7 5,56 160 2,90
1 33,4 3,38 5L STD 40 2,50
1 33,4 4,55 5L XS 80 3,24
1 33,4 6,35 160 4,24
1 1/4 42,2 3,56 5L STD 40 3,39
1 1/4 42,2 4,85 5L XS 80 4,47
1 1/4 42,2 6,35 160 5,61
1 1/2 48,3 3,68 5L STD 40 4,07
1 1/2 48,3 5,08 5L XS 80 5,41
1 1/2 48,3 7,14 160 7,25
2 60,3 3,91 5L 5LX STD 40 5,44
2 60,3 5,54 5L 5LX XS 80 7,48
2 60,3 8,74 160 11,11
2 60,3 11,07 5L 5LX XXS 13,45
2 1/2 73 5,16 5L 5LX STD 40 8,63
2 1/2 73 7,01 5L 5LX XS 80 11,41
2 1/2 73 9,53 160 14,92
2 1/2 73 14,02 5L 5LX XXS 20,39
3 88,9 5,49 5L 5LX STD 40 11,29
3 88,9 7,62 5L 5LX XS 80 15,27
3 88,9 11,13 160 21,33
3 88,9 15,24 5L 5LX XXS 27,68
3 1/2 101,6 5,74 5L 5LX STD 40 13,57
3 1/2 101,6 8,08 5L 5LX XS 80 18,63
4 114,3 6,02 5L 5LX STD 40 16,07
4 114,3 8,56 5L 5LX XS 80 22,32
4 114,3 11,13 5L 5LX 120 28,32
4 114,3 13,49 5L 5LX 160 33,54
4 114,3 17,12 5L 5LX XXS 41,03
5 141,3 6,56 5L S STD 40 21,75
5 141,3 9,52 5L X XS 80 30,97
5 141,3 12,70 5L 120 40,28
5 141,3 15,88 5L 160 49,09
5 141,3 19,05 5L XXS 57,42
6 168,3 7,11 5L 5LX STD 40 28,26
6 168,3 10,97 5L 5LX XS 80 42,56
6 168,3 14,27 5L 5LX 120 54,20
6 168,3 18,26 5L 5LX 160 67,56
6 168,3 21,95 5L XXS 79,22
8 219,1 6,35 5L 5LX 20 33,31
8 219,1 7,04 5L 5LX 30 36,81
8 219,1 8,18 5L 5LX STD 40 42,55
8 219,1 10,31 60 53,08
8 219,1 12,70 5L 5LX XS 80 64,64
10 273 6,35 5L 5LX 20 41,77
10 273 7,80 5L 5LX 30 51,03
10 273 9,27 5L 5LX STD 40 60,29
10 273 12,70 5L 5LX XS 60 81,55
10 273 15,09 80 96,01
10 273 18,26 5L 5LX 100 114,75
12 323,9 6,35 5L 5LX 20 49,72
12 323,9 8,35 5L 5LX 30 65,20
12 323,9 9,52 5L 5LX STD 73,80
12 323,9 12,70 5L 5LX XS 97,46
12 323,9 14,27 5L 5LX 60 108,96
12 323,9 17,48 5L 5LX 80 132,08
14 355,6 7,92 5L 5LX 20 67,90
14 355,6 9,53 5L 5LX STD 30 81,33
14 355,6 12,70 5L 5LX XS 107,39
14 355,6 15,09 60 126,71
14 355,6 19,05 5L 5LX 80 158,10
14 355,6 23,83 100 194,96
18 457 7,92 5L 5LX 20 87,71
18 457 9,53 5L 5LX STD 105,16
18 457 11,13 5L 5LX 30 122,38
18 457 12,70 5L 5LX XS 139,15
18 457 14,27 5L 5LX 40 155,80
18 457 19,05 5L 5LX 60 205,74
18 457 23,83 80 254,55
20 508 9,53 5L 5LX STD 20 117,15
20 508 12,70 5L 5LX XS 30 155,12
20 508 15,09 STD 40 183,12
20 508 20,62 5L 5LX 60 247,83
20 508 26,19 80 311,17
22 559 9,53 5L 5LX STD 20 129,13
22 559 12,70 5L 5LX XS 30 171,09
22 559 22,23 60 294,25
24 610 9,53 5L 5LX STD 20 141,12
24 610 12,70 5L 5LX XS 187,06
24 610 14,27 5L 5LX 30 209,64
24 610 17,48 5L 5LX 40 25571
24 610 24,61 60 355,25
26 660 9,53 5L 5LX STD 152,87
26 660 12,70 5L 5LX XS 20 202,72
28 711 9,53 5L 5LX STD 164,85
28 711 12,70 5L 5LX XS 20 218,63
28 711 15,88 5L 5LX 30 271,29
30 762 9,53 5L 5LX STD 176,85
30 762 12,70 5L 5LX XS 20 234,68
30 762 15,88 5L 5LX 30 292,20
32 813 9,53 5L 5LX STD 188,82
32 813 12,70 5L 5LX XS 20 250,64
32 813 15,88 5L 5LX 30 312,15
32 813 17,48 5L 5LX 40 342,91
34 864 9,53 5L 5LX STD 200,31
34 864 12,70 5L 5LX XS 20 266,61
34 864 15,88 5L 5LX 30 332,12
34 864 17,48 5L 5LX 40 364,90
36 914 9,53 5L 5LX STD 212,56
36 914 12,70 5L 5LX XS 20 282,27
36 914 15,88 5L 5LX 30 351,70
36 914 19,05 5L 5LX 40 420,42
